Chicago Plenum Housing LED Recessed Lighting
BACK TO FIND BY HOUSING TYPE>
The City of Chicago, Illinois has its own set of code requirements for junction box installations in plenum spaces. Our CP housing options make meeting these requirements easy
LittleOnes Micro - 1.25" Aperture
Source: LED Color Options:
Classic White,
Dim To Warm | Source Lumens: 525 - 1000
LittleOnes Micro is the USAI BeveLED family's newest tiny member. Unique for its outstanding flexibility with a full family offering, this 1.25" dynamo provides the ultimate versatility possible in an LED fixture this small. It’s installable AND serviceable from below, and its square or round shapes can work with most typical ceiling types, including retrofit applications. Have you ever met a tiny ONE like this?
| LittleOnes Micro | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| RD DL High Output |  PDF |
IES |
M1RD-HO |
| SQ DL High Output | PDF |
IES |
M1SD-HO |
| RD ADJ High Output | PDF |
IES |
M1RA-HO |
| SQ ADJ High Output | PDF |
IES |
M1SA-HO |
| RD WW High Output | PDF |
IES |
M1RW-HO |
| SQ WW High Output | PDF |
IES |
M1SW-HO |
| RD DL Standard Output | PDF |
IES |
M1RD-SO |
| SQ DL Standard Output | PDF |
IES |
M1SD-SO |
| RD ADJ Standard Output | PDF |
IES |
M1RA-SO |
| SQ ADJ Standard Output | PDF |
IES |
M1SA-SO |
| RD WW Standard Output | PDF |
IES |
M1RW-SO |
| SQ WW Standard Output | PDF |
IES |
M1SW-SO |
LittleTwos Pinhole - 2" Aperture
Source: LED | LED Color Options: Classic White, Dim To Warm,
Color Select Tunable White | Source Lumens: 800 - 2600
Meet our newest full family assortment of 2" aperture pinhole recessed fixtures. The LittleTwos pinholes install from below or with options from a complete family of housings to address most ceiling types. Perfect for renovations, residential, commercial, hospitality and more, this new product line of minimal fixtures will provide a clean ceiling appearance with superior visual comfort and low glare.
| High Output with One Fixture Per Driver | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| Round Comfort DL | PDF |
IES |
S2RC-HO |
| Round Downlight | PDF |
IES |
S2RD-HO |
| Square Comfort DL | PDF |
IES |
S2SC-HO |
| Square Downlight | PDF |
IES |
S2SD-HO |
| Round Adjustable | PDF |
IES |
S2RA-HO |
| Square Adjustable | PDF |
IES |
S2SA-HO |
| Round Wall Wash | PDF |
IES |
S2RW-HO |
| Square Wall Wash | PDF |
IES |
S2SW-HO |
| Standard Output with Multiple Fixtures per Driver | View Spec Sheet | Download Photometry | Product Details |
| Round Comfort DL | PDF |
IES |
S2RC-SO |
| Round Downlight | PDF |
IES |
S2RD-SO |
| Square Comfort DL | PDF |
IES |
S2SC-SO |
| Square Downlight | PDF |
IES |
S2SD-SO |
| Round Adjustable | PDF |
IES |
S2RA-SO |
| Square Adjustable | PDF |
IES |
S2SA-SO |
| Round Wall Wash | PDF |
IES |
S2RW-SO |
| Square Wall Wash | PDF |
IES |
S2SW-SO |
BeveLED Mini Complete- 3" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1125 - 2475
The smallest member of our iconic BeveLED family, BeveLED Mini delivers superior light performance for every application in a small yet powerful aperture. Now infused with more LED color and dimming options than ever before, field-flexibility features and an extensive range of housing upgrades, the BeveLED Mini full family platform provides solutions for all projects.
| BeveLED Mini Complete | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| Round Downlight Deep Regress |
PDF |
IES |
B3RC |
| Round Downlight | PDF |
IES |
B3RD |
| Square Downlight Deep Regress |
PDF |
IES |
B3SC |
| Square Downlight | PDF |
IES |
B3SD |
| Round Adjustable | PDF |
IES |
B3RA |
| Square Adjustable | PDF |
IES |
B3SA |
| Round Wall Wash | PDF |
IES |
B3RW |
| Square Wall Wash | PDF |
IES |
B3SW |
BeveLED Mini Infinite Color+ - 3" Aperture
Source: LED | LED Color Options:
Infinite Color+ | Source Lumens: 1100 - 1200
BeveLED Mini Infinite Color+ is the smallest member of our iconic BeveLED family to offer full color + tunable white light flexibility. Access to a wide variety of perfect architectural whites, saturated colors, neutrals, and pastels are possible with DMX controls. Infinite opportunities abound for residential, hospitality and retail lighting applications, and any project requiring full color and white light flexibility.
| BeveLED Mini Infinite Color+ | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| Round Downlight Deep Regress |
PDF |
IES |
B3RC-FC1 |
| Round Downlight | PDF |
IES |
B3RD-FC1 |
| Square Downlight Deep Regress |
PDF |
IES |
B3SC-FC1 |
| Square Downlight | PDF |
IES |
B3SD-FC1 |
| Round Adjustable | PDF |
IES |
B3RA-FC1 |
| Square Adjustable | PDF |
IES |
B3SA-FC1 |
| Round Wall Wash | PDF |
IES |
B3RW-FC1 |
| Square Wall Wash | PDF |
IES |
B3SW-FC1 |
BeveLED Mini Basic - 3" Aperture
Source: LED | LED Color Options: Classic White | Source Lumens: 1100 - 1500
With this highly versatile yet economically attractive LED product family, we deliver consistently classic white light with the same below ceiling appearance as our BeveLED Mini Complete product line.
BeveLED Mini Incline for Sloped Ceilings - 3" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1125 - 2475
USAI’s Incline product family provides beautiful, precise recessed lighting for sloped ceiling installations from 15o (3/12 pitch) up to 45o (12/12 pitch). Installations are always perfectly aligned in round and square with built-in integral leveler, and rated for direct contact with spray-foam insulation.
BeveLED Mini Connect Intersection Downlighting - 3" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1575
USAI Lighting and Armstrong Ceiling Solutions have partnered to offer architects and designers a new way to seamlessly integrate recessed downlights with architectural suspension systems. With the Intersection Downlighting ceiling system, BeveLED Mini downlights can be placed at the intersections of the ceiling grid– allowing for perfect alignment of lighting and architecture.
BeveLED Mini Trimless Acoustical - 3" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1125 - 2475
Achieve the look of trimless drywall with the serviceability and access of acoustical ceiling tiles. USAI’s Trimless Acoustical lighting is designed to fit into precut ceiling panels by Armstrong® Ceiling Solutions with precision and ease.

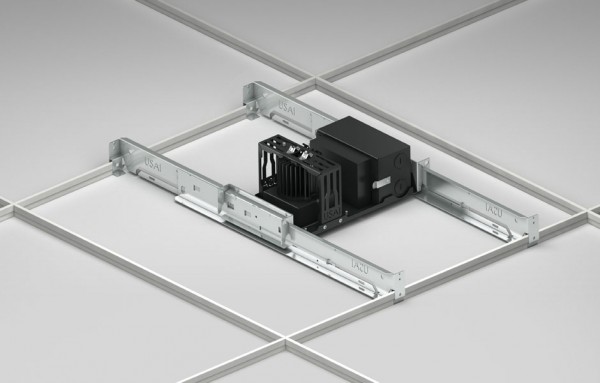

BeveLED Mini Basic Trimless Acoustical - 3" Aperture
Source: LED | LED Color Options: Classic White | Source Lumens: 1075 - 1575
Achieve the look of trimless drywall with the serviceability and access of acoustical ceiling tiles. USAI’s Trimless Acoustical lighting is designed to fit into precut ceiling panels by Armstrong® Ceiling Solutions with precision and ease.
BeveLED Mini For WoodWorks®- 3" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1175 - 2475
Committed to making lighting integration consistent and perfect, USAI Lighting and Armstrong® Ceiling Solutions partner together to design and engineer flawless lighting solutions for WoodWorks® ceilings. Achieve perfect fixture placement every time with Micro®, BeveLED Mini® and BeveLED® 2.2 products.
| BeveLED Mini For WoodWorks | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| Round Downlight Deep Regress |
PDF |
IES |
B3RCM-UA |
| Round Downlight | PDF |
IES |
B3RDM-UA |
| Square Downlight Deep Regress |
PDF |
IES |
B3SCM-UA |
| Square Downlight | PDF |
IES |
B3SDM-UA |
| Round Adjustable | PDF |
IES |
B3RAM-UA |
| Square Adjustable | PDF |
IES |
B3SAM-UA |
| Round Wall Wash | PDF |
IES |
B3RWM-UA |
| Square Wall Wash | PDF |
IES |
B3SWM-UA |
BeveLED 2.2 Complete - 4.5" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1150 - 4150
Simply the most complete recessed LED product family available, with industry-leading performance, precision optics, best-in-class dimming, and all of USAI’s patented LED color technologies available.
| BeveLED 2.2 Complete | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| Round Downlight, Deep Regress |
PDF |
IES |
B4RC |
| Round Downlight | PDF |
IES |
B4RD |
| Square Downlight, Deep Regress |
PDF |
IES |
B4SC |
| Square Downlight | PDF |
IES |
B4SD |
| Round Adjustable | PDF |
IES |
B4RA |
| Square Adjustable | PDF |
IES |
B4SA |
| Round Wall Wash | PDF |
IES |
B4RW |
| Square Wall Wash | PDF |
IES |
B4SW |
BeveLED 2.2 Infinite Color+ - 4.5" Aperture
Source: LED | LED Color Options: Infinite Color+ | Source Lumens: 1675 - 2100
Instead of painting the walls with acrylic, use light - and enjoy the flexibility that gives you. Explore the full gamut of the color space using simple DMX controls with dynamic red, green and blue color plus architectural whites. Available with full product family functionality to enhance and energize your next project.
| BeveLED 2.2 Infinite Color+ | View Spec Sheet | Download Photometry | Product Details |
|---|---|---|---|
| Round Downlight, Deep Regress |
PDF |
IES |
B4RC-FC1 |
| Round Downlight | PDF |
IES |
B4RD-FC1 |
| Square Downlight, Deep Regress |
PDF |
IES |
B4SC-FC1 |
| Square Downlight | PDF |
IES |
B4SD-FC1 |
| Round Adjustable | PDF |
IES |
B4RA-FC1 |
| Square Adjustable | PDF |
IES |
B4SA-FC1 |
| Round Wall Wash | PDF |
IES |
B4RW-FC1 |
| Square Wall Wash | PDF |
IES |
B4SW-FC1 |
BeveLED 2.2 Basic - 4.5" Aperture
Source: LED | LED Color Options: Classic White | Source Lumens: 900 - 2650
With this highly versatile yet economically attractive LED product family, we deliver consistently classic white light with the same below ceiling appearance as our BeveLED 2.2 Complete product line.
BeveLED 2.2 Incline for Sloped Ceilings - 4.5" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1150 - 4150
USAI’s Incline product family provides beautiful, precise recessed lighting for sloped ceiling installations from 15o (3/12 pitch) up to 45o (12/12 pitch). Installations are always perfectly aligned in round and square with built-in integral leveler, and rated for direct contact with spray-foam insulation.
BeveLED 2.2 Incline for Sloped Ceilings Infinite Color+ - 4.5" Aperture
Source: LED | LED Color Options:
Infinite Color+ | Source Lumens: 1675 - 2100
USAI’s Incline product family provides beautiful, precise recessed lighting for sloped ceiling installations from 15o (3/12 pitch) up to 45o (12/12 pitch). Installations are always perfectly aligned in round and square with built-in integral leveler, and rated for direct contact with spray-foam insulation.
BeveLED 2.2 Glow - 4.5" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 900 - 1600
BeveLED 2.2 Glow provides high performance lighting with a decorative glowing accent. Choose from 1-1/2", 3", or 4" length opal glass in round and square profiles to add bright yet functional illumination to any space.
BeveLED 2.2 Trimless Acoustical - 4.5" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1150 - 4150
Achieve the look of trimless drywall with the serviceability and access of acoustical ceiling tiles. USAI’s Trimless Acoustical lighting is designed to fit into precut ceiling panels by Armstrong® Ceiling Solutions with precision and ease.
BeveLED 2.2 Basic Trimless Acoustical - 4.5" Aperture
Source: LED | LED Color Options: Classic White | Source Lumens: 900 - 2650
Achieve the look of trimless drywall with the serviceability and access of acoustical ceiling tiles. USAI’s Trimless Acoustical lighting is designed to fit into precut ceiling panels by Armstrong® Ceiling Solutions with precision and ease.
BeveLED 2.2 For WoodWorks®- 4.5" Aperture
Source: LED | LED Color Options: Classic White, Warm Glow Dimming, Color Select Tunable White | Source Lumens: 1175 - 2475
Committed to making lighting integration consistent and perfect, USAI Lighting and Armstrong® Ceiling Solutions partner together to design and engineer flawless lighting solutions for WoodWorks® ceilings. Achieve perfect fixture placement every time with Micro®, BeveLED Mini® and BeveLED® 2.2 products.
|
|
