USAI Lighting’s recessed fixtures for Armstrong® World Industries new seamless acoustical ceiling and wall system that looks like drywall, but offers Total Acoustics® performance, the ideal combination of sound absorption and sound blocking.
How It Works

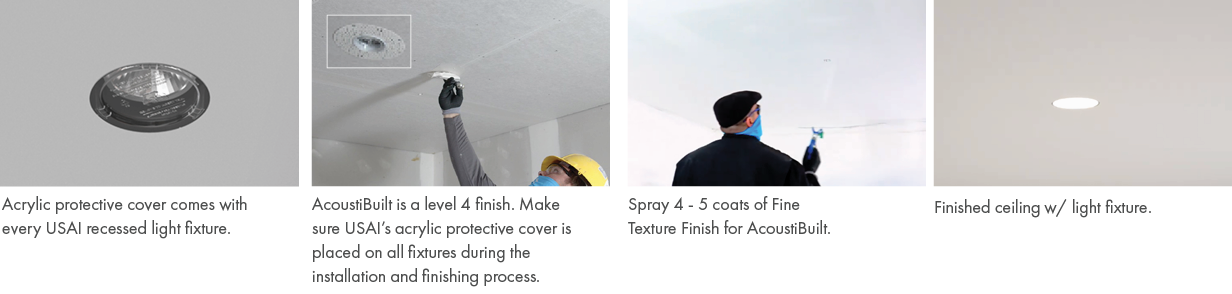

Easier Installation with USAI Lighting + Protective Acrylic Cover
Each USAI Lighting recessed fixture comes with its own protective acrylic cover. Make sure lights have their covers attached before spraying. Fine-Texture Finish for AcoustiBuilt® is sprayed with the Graco® Mark V Airless Texture Sprayer and Low Pressure Rac X LP SwitchTip, LP525. The spraying procedure is designed to produce the fine-texture finish and acoustical performance. Spray 4 - 5 coats. USAI Lighting’s acrylic covers will protect the lights during this process.
USAI Products Compatible with AcoustiBuilt
All USAI Lighting recessed fixtures can be installed with AcoustiBuilt Seamless Acoustical Ceiling System by Armstrong® World Industries.
the LittleOnes®
Who says TINY comes at the expense of performance? Meet USAI’s 1 inch aperture family.
Aperture Size: 1", 1.25"
Source Lumens: 525 - 2000 lm
Delivered Lumens: 275 - 1600 lm
Wattage: 7W - 18W
Beamspreads: 25° - 50°, WW
Declare Label Products Available
the LittleTwos™
A new high-performance family of 2" pinhole recessed downlights and cylinders.
Aperture Size: 2"
Source Lumens: 800 - 2600 lm
Delivered Lumens: 400 - 2000 lm
Wattage: 7W - 20W
Beamspreads: 15° - 70°, WW
BeveLED Mini®
Our iconic BeveLED trim in a small yet powerful 3" aperture family.
Aperture Size: 3", 3.5"
Source Lumens: 925 - 2475 lm
Delivered Lumens: 775 - 2025 lm
Wattage: 9W - 20W
Beamspreads: 15° - 70°, WW
Declare Label Products Available
BeveLED® 2.2
Industry-leading performance in the most complete recessed LED product family available.
Aperture Size: 4.5", 6"
Source Lumens: 1150 - 4150 lm
Delivered Lumens: 775 - 3450 lm
Wattage: 9W - 36W
Beamspreads: 10° - 90°, WW
Declare Label Products Available
TrueZero360™
Zero regress flush glass trim lighting fixtures that integrate seamlessly with the ceiling plane.
Aperture Size: 3"
Source Lumens: 925 – 3475 lm
Delivered Lumens: 650 – 2575 lm
Wattage: 9W - 29W
Beamspreads: 25° - 65°, WW
Micro Multi-Cell
Our smallest LED downlight which artistically blends technology and sleek design.
Aperture Size: 1.25"
Source Lumens: 750 - 4675 lm
Delivered Lumens: 500 - 3125 lm
Wattage: 8W - 41W
Beamspreads: 30° - 50°, WW
SliverLED®
Minimal pinhole trims and housings for the sleekest and tightest spaces.
Aperture: 1.75"
Source Lumens: 1075 - 1575 lm
Delivered Lumens: 475 - 1400 lm
Wattage: 9W - 15W
Beamspreads: Medium, Flood, WW
